Door Handles 611 satin stainless steel (53mm)

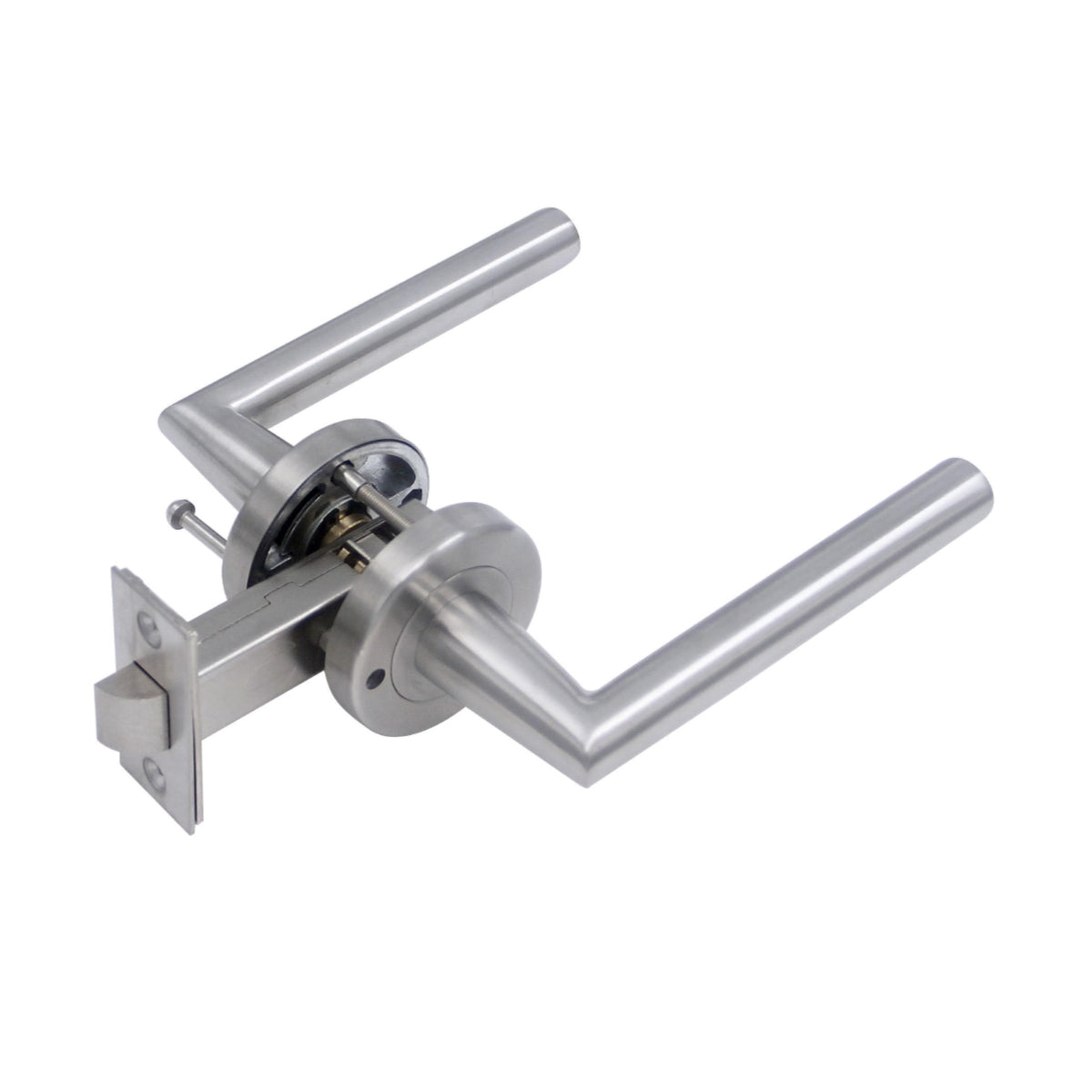

Privacy

• inside push/pull pin, emergency release from outside
• suits for 35-45mm door thickness
• fits for 20mm hole

• 53mm back plate
• 60mm latch
• Strike plate and screws are included
• recommended for bathroom

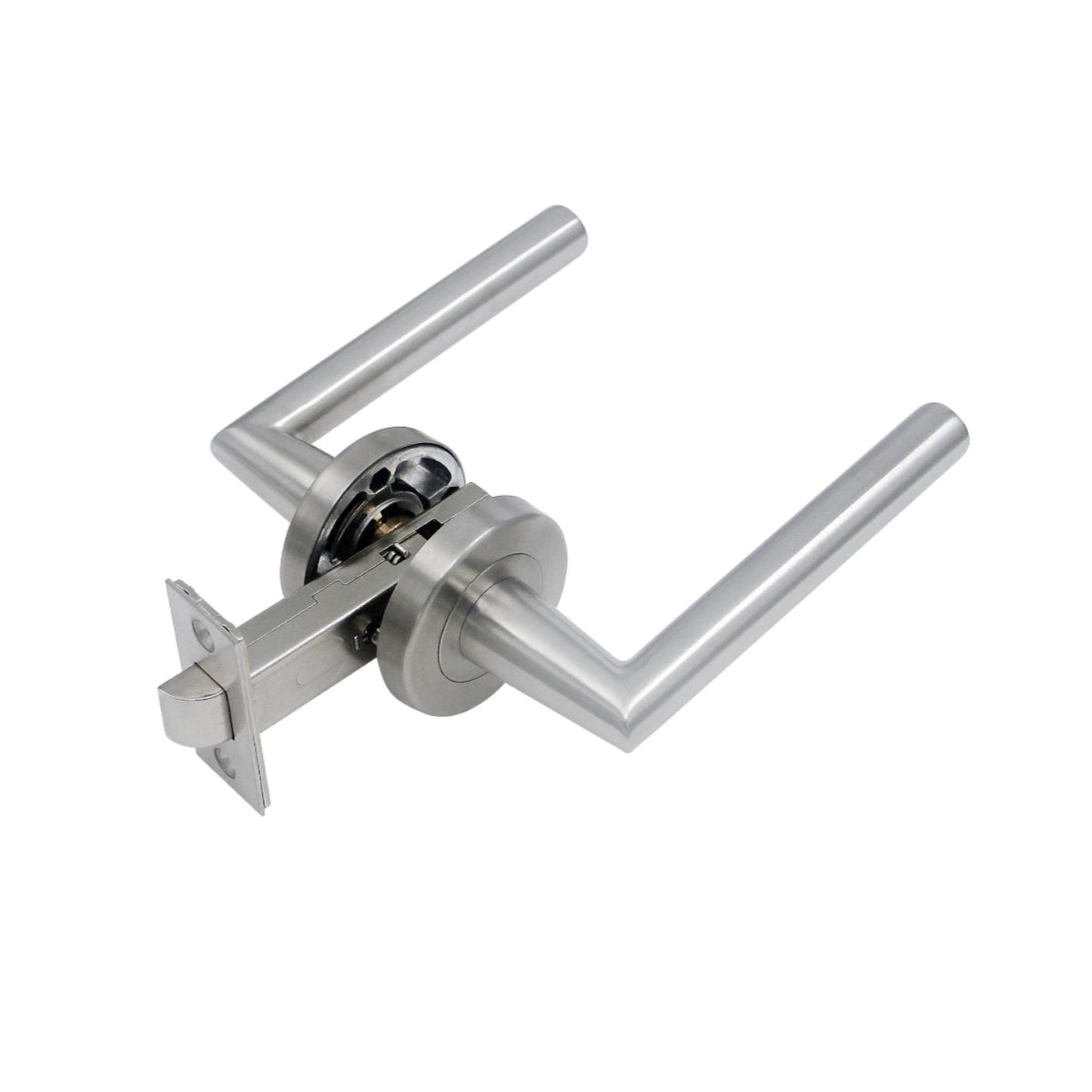

Passage

• non-locking required
• suits for 35-45mm door thickness
• fits for 20mm hole

• 53mm back plate
• 60mm latch
• Strike plate and screws are included
• recommended for walkway

Dummy (one-sided)

• no locking mechanism
• ONE-SIDED only (not as a pair)
• can be mounted on either LH or RH door
• 53mm back plate
• screws are included
• recommended for wardrobe, linen

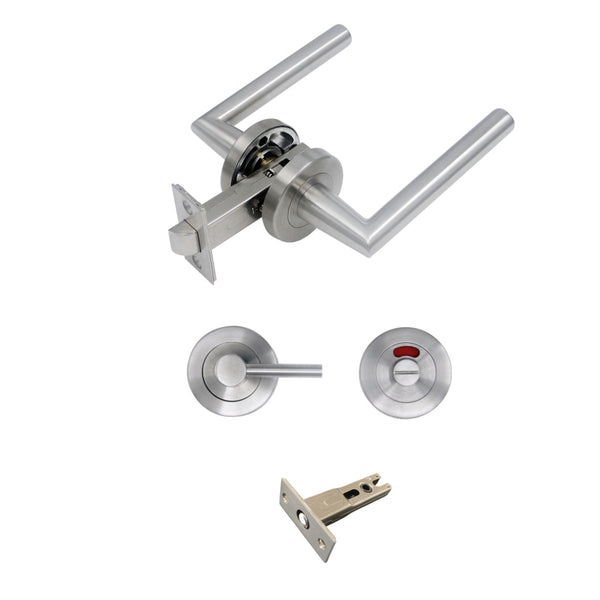

Passage + Privacy bolt with indicator (Thumb turn & release)

The package include a pair of passage handles and a privacy bolt with indicator (Thumb turn & release)

• Material: SUS304 stainless steel
• Satin stainless steel finish
• Escutcheon dimension: 54x10mm
• Star spindle: 6x2mm

• Function: Privacy- External indicating escutcheon with emergency coin release
•                 Internal snib turn with concealed fixing
• Bolt: 60mm privacy bolt
• Fits for 30-40mm door thickness
• Can be mounted on LH or RH door

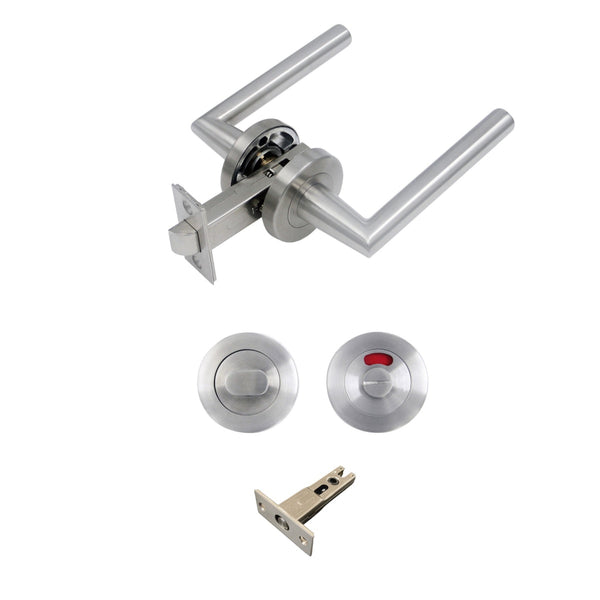

Passage + Privacy bolt with indicator (Pin turn & release)

The package include a pair of passage handles and a privacy bolt with indicator (Pin turn & release)

• Material: SUS304 stainless steel
• Satin stainless steel finish
• Escutcheon dimension: 54x10mm
• Star spindle: 6x2mm
• Function: Privacy- External indicating escutcheon with emergency coin release
•                 Internal disabled snib turn with concealed fixing
• Bolt: 60mm privacy bolt
• Fits for 30-40mm door thickness
• Can be mounted on LH or RH door
